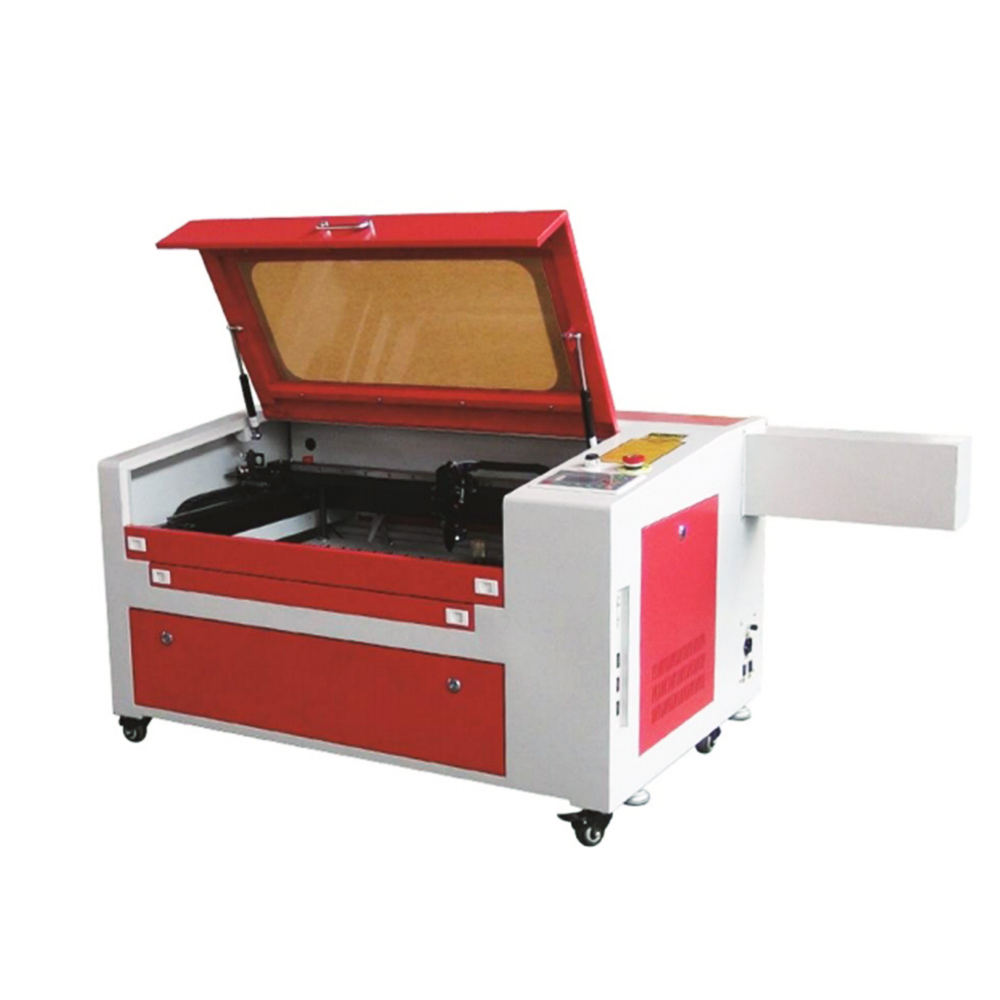

HR-G460

This is small size laser cutting and engraving machine for school ,home ,factory used . Easy to move and update design with linear on XY and RD controller.

GET A QUOTE

Description

Laser Power	40W / 50W / 60W
Laser Type	CO2 glass tube
Power Supply	AC220±10% 50 Hz / AC110±10% 60Hz
Working Area	600mm x 400mm
Max Moving Speed	0-30000mm/min
Worktable	Three lifting modes are optional
Locating Precision	<0.01mm
Min Shaping Character	character:2x2mm, letter:1x1mm
Operating Temperature	5°C-35°C
Resolution Ratio	≤4500dpi
Data Transfer Interface	U disk / USB / Network Cable
System Environment	Windows 2000 / Windows XP / Win7 / Win8 / Win10
Cooling Way	Water cooling and protection system
Graphic Format Supported	Files which CorelDraw,Photoshop, AutoCAD can identify (BMP, GIF, JPGE, PCX, TGA, TIFF, PLT, CDR, DMG, DXF, PAT, CDT, CLK, DEX, CSL, CMX, AI, WPG, WMF, EMF, CGM, SVG, SVGZ, PCT, FMV, GEM, CMX)


Compatible Software	CorelDraw, AutoCAD
Cutting Thickness	0–10mm(depends on different materials)
Color Separation	Separation of cutting up to 256 colors
Sloping Engraving	Yes,slope can be designed discretionarily
Water cut-off protection	Yes
Net Weight	120kg
Gross Weight	150kg
Machine Dimension	1140x770x670mm
Package Dimension	1410x880x860mm

Packing List	Machine Body * 1; Smoke Pipe * 1; Air pump * 1; Air pipe * 1; Water pump * 1; Water Pipe * 1; Goggles * 1
Packing	1.Firstly, packed the laser machine with PE film for clearing and damp proofing
	2.Secondly, pack the laser machine by carton for safety and clashing.
	3.Thirdly, pack the machine with standard plywood case.
	4.Lastly, put all machines into container carefully.
Remarks	1. The laser tube is selected according to the material to be cut;
Remarks	2. Laser power ≤ 80W, use water pump; 80W < Laser power ≤ 130W, use CW3000 water tank; 130W < Laser power ≤ 150W, use CW5000 chiller; 150W < Laser power, use CW6000 chiller.
