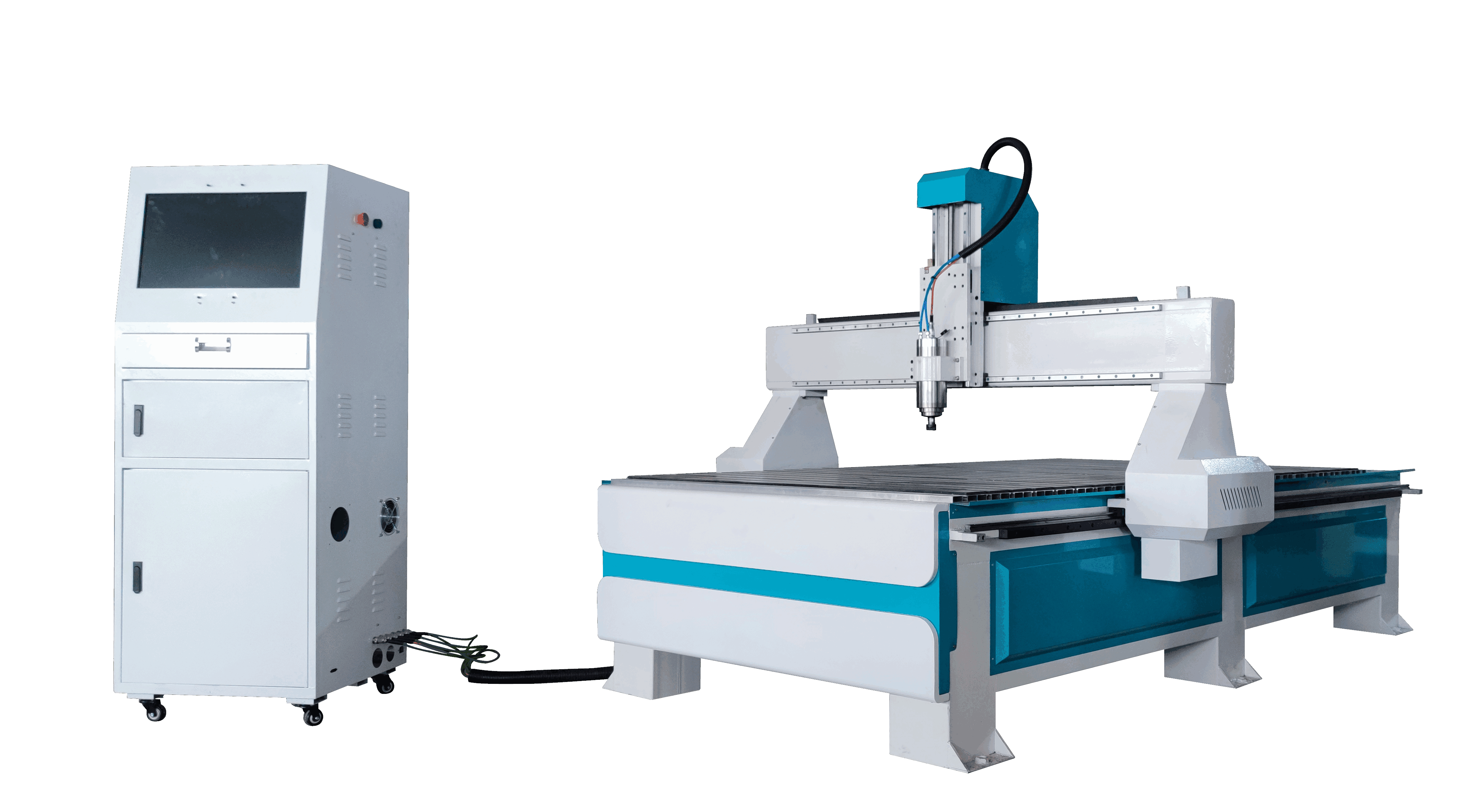

HR-1325
Advantage
1.Adopting linear square guide rail which can adjust gop and canchange frack, the lile can be not less than 10 years. Comprehensiveperformance is the best.2, Cast iron platform with the box structure to ensure high rigidity andpre cision.3. High performance ,high power spindle motor, low noise, strongcutting.
4.Compatible Type3/Aricam/Casimate,Proe/UG/Wentai etc. software.5.Have power restored, power oulages continued carving. processingtime forecast etc.functions, the real human design.
Applicable Industry
1. Widely used in furniture processing, home decoration, woodworking decoration,wooden aris and crafis, stone carving processingetc. industries.2. The machine is used for large areas single-body, end milling, 3Drelief, cutting production etc..
Model |
HR--1325 |
XYZ Aris Working Area |
1300*2500*200mm |
Working Vollage |
380V/220V/110V |
Spindle Power |
3KW/4.5KW/6KW(optional) |
Guide Rai circular guide rail |
square rail |
Spindle Speed |
0-24000rpm/min |
Max Moving Speed |
28000mm/min |
Motor |
stepper motar /servo motor (optional) |
Max Engraving Speed |
20000mm/min |
Machine Dimersion |
1900*3200*1450mm |
Max Height of Material |
200mm(can be adjustable) |
Package Dimension |
2050*3500*1500mm |
Resolution |
0.005mm |
Contral System |
Ncstudio/DSP(optional) |
Repeat Positioning Accuracy |
0.05mm |
Gross Weight |
1000kg |
Command |
G code,U00,Mmg.PIt.Eng |
Sottware Operating |
Windowsxp/7/10 |
Optional Accessories |
rotary attachment/ dust collector/metal water tank/vacuum table system |
